While the basic physics of a lifting electromagnet—running an electrical current through a coiled wire—is taught in high school, applying this principle to safely move multi-ton industrial loads requires precise engineering. For facility managers, procurement teams, and industrial engineers, understanding how these devices generate, focus, and shed magnetic force is critical. You need this knowledge to properly evaluate equipment suitability and ensure strict workplace safety.
This guide breaks down the complex internal mechanics of industrial lifting electromagnets. We translate raw physics into actionable evaluation criteria for your daily material handling decisions. By learning these core principles, you can better understand operational limits, prevent costly equipment mismatches, and protect your personnel from avoidable hazards on the factory floor.
Lifting electromagnets rely on a continuous DC power supply to maintain their magnetic field; interruption of power instantly releases the load unless backup systems are in place.
The lifting capacity is heavily dictated by real-world variables, primarily the "air gap" (rust, paint, surface unevenness) and the thickness of the target material.
Thermal management is the primary operational constraint; exceeding the magnet’s specified duty cycle leads to overheating, which degrades coil insulation and permanently reduces lifting force.
Evaluating a lifting electromagnet requires matching the magnet's footprint and pole design (e.g., circular, rectangular, bipolar) to the specific shape and alloy of the load.
To evaluate material handling equipment, we must first understand the fundamental physics at play. We scale Ampere’s Law to an industrial level to create immense lifting power.
Passing direct current (DC) through a conductive wire creates a magnetic field. In a lifting electromagnet, engineers tightly wind copper or aluminum wire into massive coils. This tight coiling concentrates the magnetic field. A higher current or a greater number of wire turns produces a proportionally stronger magnetic force. However, an empty coil cannot lift heavy steel plates on its own. It needs a medium to amplify and direct the force.
Engineers place a solid steel core inside the wire coil. This internal core acts as a massive amplifier. When electricity flows through the coil, the magnetic field aligns the atomic domains within the steel core. This alignment multiplies the magnetic field strength exponentially.
The core material must possess a specific physical property called "low magnetic retentivity." This term means the steel must instantly lose its magnetism when you cut the electrical power. High retentivity would cause the core to stay magnetized. If that happened, operators could not drop loads precisely. Imagine a scrap yard crane unable to release shredded metal because the magnet remains slightly active. Low retentivity ensures an immediate, clean release the second the controller cuts the voltage.

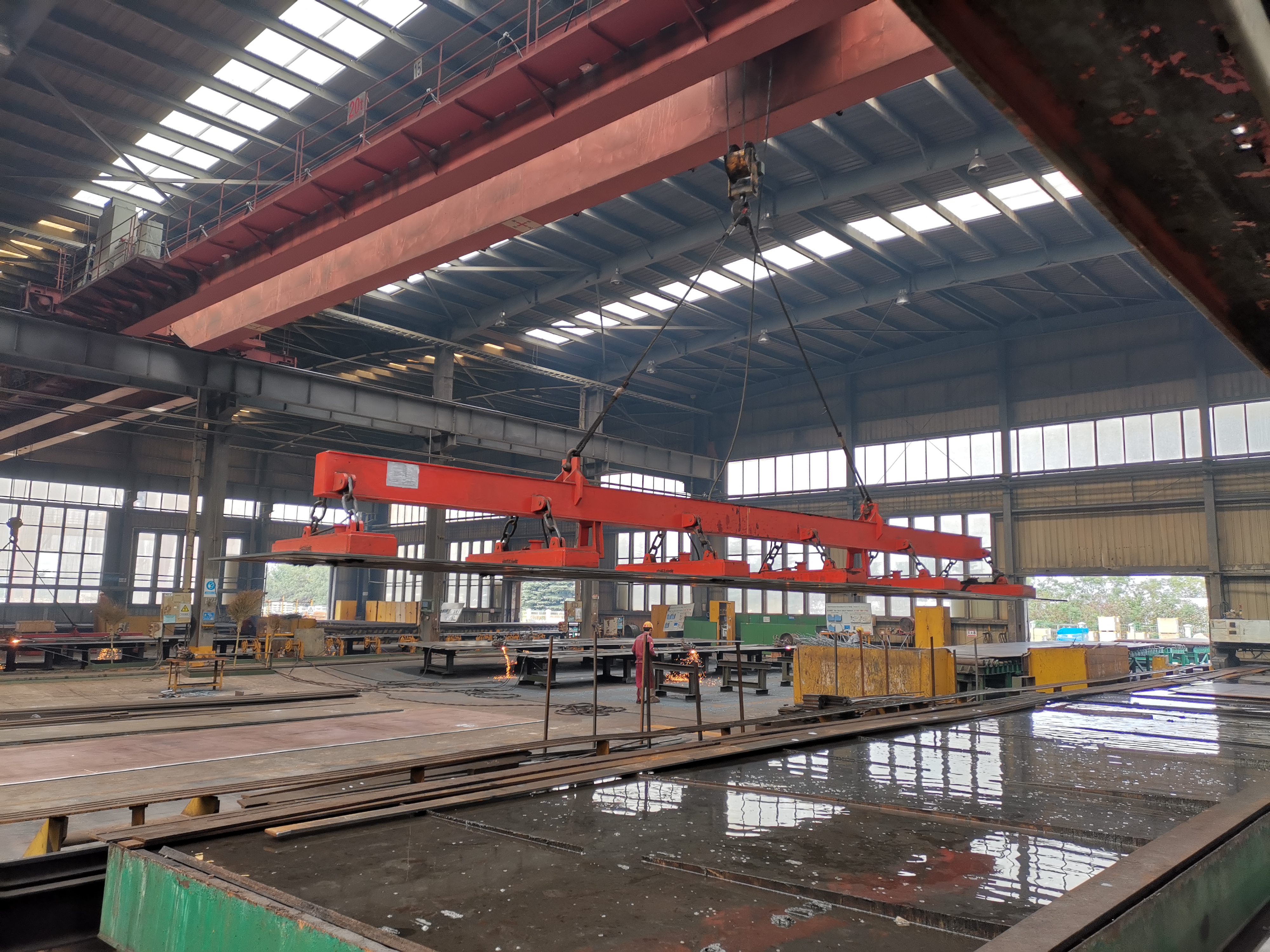

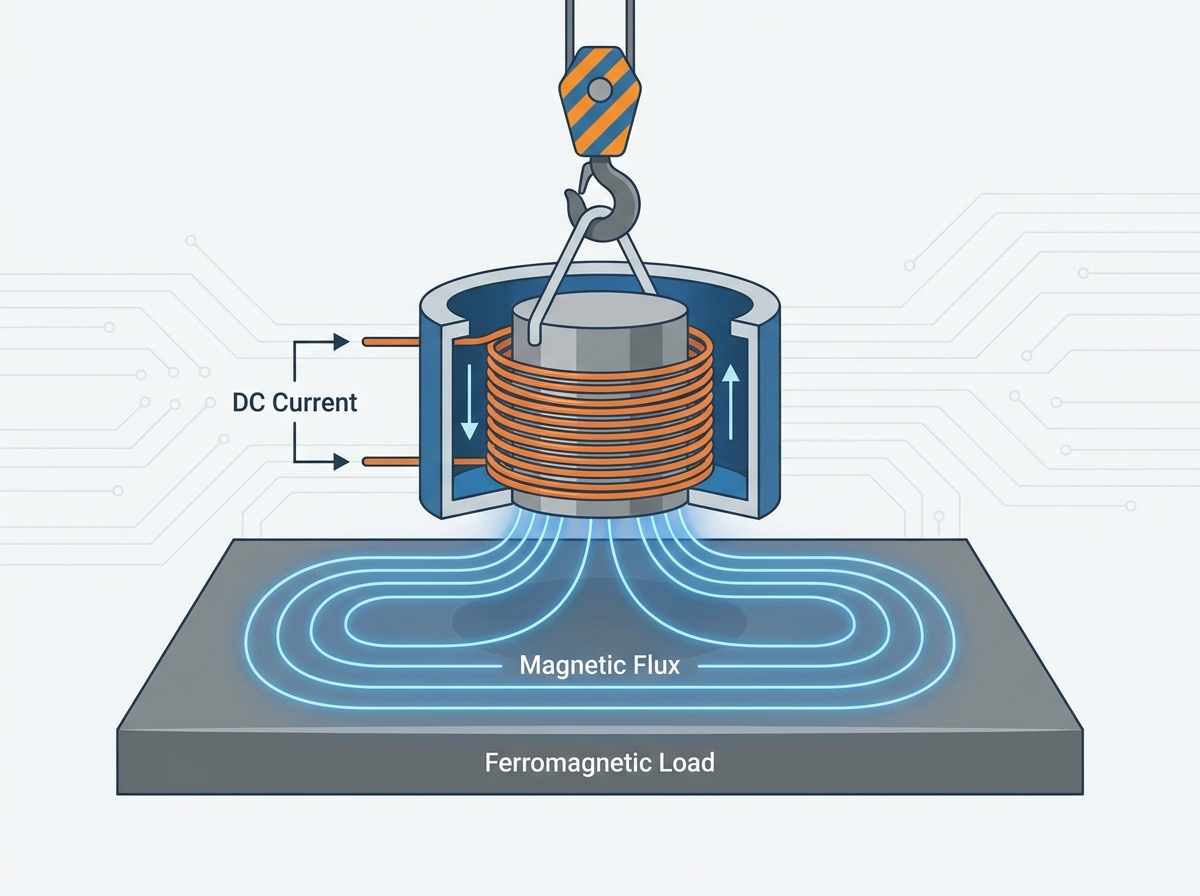

An electromagnet functions as an open magnetic circuit looking for a way to close itself. The heavy steel housing directs the magnetic flux lines downward toward the bottom face of the magnet. When you place a steel load beneath it, the flux lines enter the load and travel through it to return to the magnet's opposite pole. The load effectively becomes a temporary physical part of the magnet's closed circuit. This seamless flow of flux lines is what binds the heavy load to the magnet face.
Every structural component inside a lifting electromagnet serves a specific purpose. These units must survive extreme physical abuse while maintaining delicate electrical integrity.
The choice of coil material drastically impacts performance, size, and weight. Manufacturers generally offer two options.
Copper coils deliver exceptional electrical conductivity. They generate more magnetic force per square inch compared to aluminum. This high efficiency allows engineers to design smaller, more compact magnets. A smaller footprint is highly advantageous when space is limited or when crane weight capacities are strict.
Aluminum coils offer a lighter, cost-effective alternative. However, aluminum has lower conductivity. To achieve the same lifting force as a copper unit, an aluminum coil requires more wire wraps. This necessity results in a physically larger outer housing. Both materials work well, but your choice depends on your specific crane capacity and operational space.
Table 1: Copper vs. Aluminum Coil Characteristics
Feature | Copper Coils | Aluminum Coils |
|---|---|---|
Conductivity | High | Lower |
Physical Footprint | Compact | Large / Bulky |
Weight Profile | Heavier per cubic inch | Lighter overall for large builds |
Electrical coils generate intense heat. Furthermore, crane operators frequently use these magnets outdoors in rain or snow. To protect the internal wiring, manufacturers fill the empty space inside the housing with specialized epoxy resins or potting compounds.
These compounds serve three crucial functions:
They lock the wire coils firmly in place, preventing micro-abrasions caused by daily vibrations.
They create an impenetrable barrier against moisture ingress, which prevents internal short circuits.
They act as a thermal bridge. The compound absorbs heat from the inner coils and transfers it to the outer casing, where it can safely dissipate into the surrounding air.
A lifting magnet essentially acts as a giant hammer. Operators routinely drop it directly onto piles of jagged scrap metal or thick steel slabs. The bottom plate, often called the bump face, endures repetitive, high-impact physical contact. Manufacturers typically forge this bottom plate from high-manganese steel. Manganese steel actually work-hardens upon impact. The more you strike it, the tougher the surface becomes. This durability prevents the internal coils from being crushed during aggressive material handling operations.
An industrial lifting electromagnet cannot simply plug into a standard wall outlet. It requires specialized external infrastructure. Facilities must install heavy-duty rectifiers to convert alternating current (AC) grid power into the direct current (DC) power that magnets demand. Additionally, modern setups utilize advanced controllers with variable voltage capabilities. A variable voltage controller allows an operator to partially reduce the magnetic field. This technique is invaluable when you need to drop a single steel plate from a stack of three, rather than dropping the entire load at once.
Selecting the right equipment requires looking past the glossy marketing brochures. A manufacturer’s theoretical lifting capacity rarely matches the reality of a gritty factory floor.
You must approach a manufacturer’s "rated capacity" with caution. Testing facilities calculate this theoretical maximum under perfectly ideal conditions. They use clean, flat, ultra-thick, low-carbon steel blocks. The test magnet achieves 100% surface contact.
In the real world, you rarely encounter ideal conditions. You must account for air gaps. An air gap is any physical barrier separating the magnet's bump face from the bare steel of the load. Common air gaps include:
Heavy industrial paint or epoxy coatings.
Thick layers of rust or oxidation.
Mill scale left over from the forging process.
Uneven surfaces, corrugated shapes, or warped plates.
Even a one-millimeter air gap can drastically alter the magnetic circuit. The magnetic flux lines struggle to jump across non-magnetic barriers. Consequently, air gaps exponentially reduce the magnet's actual lifting power. Always calculate your Working Load Limit (WLL) based on the worst-case surface conditions of your typical loads.
Magnetic fields require a certain volume of steel to travel through. If you attempt to lift very thin sheet metal using a deep-field electromagnet, you will encounter a phenomenon known as magnetic saturation. The thin material simply cannot hold all the magnetic flux lines the magnet generates.
When saturation occurs, the excess magnetic flux "punches through" the thin sheet metal and bleeds into the air below it. Because the flux is not fully contained within the load, the gripping force weakens drastically. The magnet might successfully lift a massive 10-inch thick block, but drop a 1/8-inch sheet of the exact same alloy. If your facility handles thin materials, you must specify a shallow-field magnet design. These specialized magnets generate a wide, shallow flux pattern that stays trapped within thin metal layers.
Heat generation remains the most common engineering pain point in magnetic lifting. Electrical resistance inside the copper or aluminum coils creates constant heat while the magnet is energized. We measure an electromagnet's operational limits using a metric called the duty cycle.
A duty cycle defines the ratio of "on" time versus "off" time required to prevent catastrophic overheating. A "50% Duty Cycle" means the magnet can be energized for 10 minutes, but it must then rest and cool for 10 minutes. A "75% Duty Cycle" allows longer operational bursts.
You must also understand the difference between cold and hot lifting capacities. A magnet at room temperature (a cold magnet) operates at peak electrical efficiency. It yields its highest possible lifting capacity. However, as the coils heat up during a shift, their electrical resistance increases. This increased resistance reduces the current flow, which directly reduces the magnetic lifting force. You must always spec your magnet based on its hot operating parameters. If you size your equipment based on cold capacity, you will inevitably drop loads at the end of a long, busy shift.
While standard electromagnets dominate heavy industry, they are not the only solution available. Evaluating alternatives helps ensure you deploy the safest and most efficient tool for your specific application.
Chart: Magnetic Lifting Solutions Comparison
Technology Type | Operational Mechanism | Best Use Cases | Primary Drawbacks |
|---|---|---|---|
Standard Electromagnets | Continuous DC power creates the field. | Scrap handling, high-frequency variable loads. | High power consumption. Drops load if power fails. |
Electro-Permanent Magnets (EPMs) | Short electrical pulse reverses internal magnet polarity. | Flat steel plates, fail-safe environments. | Higher initial cost. Poor performance on loose scrap. |
Permanent Lifting Magnets | Manual mechanical lever moves internal magnets. | Machine shops, localized light lifting. | Not scalable for heavy overhead crane operations. |
Standard units provide unmatched versatility. They are the absolute best choice for scrap metal handling, moving loose turnings, and scenarios requiring rapid, frequent engagement and disengagement. However, they draw continuous power and generate substantial heat over long shifts.
EPMs combine the best traits of permanent magnets and electromagnets. They use a short, intense pulse of electricity to reverse the polarity of internal permanent magnets. This quick pulse turns the device "on" or "off." During the actual lift, they require zero electrical power. Because they consume no power during transit, they generate no heat and are entirely fail-safe. If the facility loses power, the EPM maintains its grip indefinitely. While highly secure, EPMs are generally more expensive and lack the deep-field penetration required for handling loose, irregular scrap metal.
These devices require an operator to physically pull a mechanical lever to actuate the magnetic field. They need no external power source. They are ideal for localized, lighter lifting tasks, such as loading a single billet into a CNC machine. However, because they require manual actuation, they are completely unsuited for remote, heavy crane operations.
Deploying heavy magnetic lifting equipment introduces significant operational hazards. You must proactively manage these risks through rigorous safety protocols and infrastructure upgrades.
The primary business and safety risk associated with standard electromagnets is sudden power failure. If grid power cuts out, the magnetic field collapses instantly, and the crane drops a multi-ton load without warning. To mitigate this catastrophic risk, industrial facilities must integrate Uninterruptible Power Supplies (UPS) or dedicated battery backup systems. A compliant backup system provides a minimum of 10 to 20 minutes of hold time during an outage. This crucial window allows the crane operator to safely lower the suspended load to the floor before the batteries deplete.
The power cables running down crane lines are highly vulnerable to physical damage. Constant flexing, stretching, and exposure to sharp metal edges cause extreme wear and tear. Damaged cables lead to severe voltage drops, which subtly weaken the magnetic lifting force over time. A fully severed cable causes an immediate short circuit and dropped load. You must implement robust cable reel systems and enforce daily visual inspections of all electrical conduits.
You must operate under the assumption that no magnetic lifting system is 100 percent fail-safe under all conditions. Safety compliance requires strict administrative controls. Management must enforce rigid "no-go" zones beneath the entire lifting path. No personnel should ever walk beneath a magnetically suspended load. Furthermore, maintenance teams must conduct regular testing of the magnet’s insulation resistance using Megger testing equipment. Routine Megger testing identifies degrading internal coil insulation long before it causes an operational failure.
A lifting electromagnet is a complex, integrated system, not just a simple mechanical tool. Its daily performance relies on a delicate, ongoing balance of electrical input, thermal management, and fluctuating load conditions. Misunderstanding these variables compromises both operational efficiency and facility safety.
Before requesting vendor quotes, we strongly advise buyers to conduct a comprehensive load audit. Document your material types, precise thicknesses, typical surface conditions, and required operating hours. Use this data to demand transparency from suppliers. Shortlist manufacturers who provide clear data on "hot" lifting capacities, rather than those who only advertise theoretical "cold" maximums. A well-specified magnet ensures reliable material flow and protects your bottom line from unexpected downtime.
A: Electrical resistance in the wire coils generates continuous heat while power is applied. Engineers manage this heat by adhering to strict operational duty cycles. They also use specialized heat-dissipating potting compounds inside the housing. Sizing the magnet correctly ensures it doesn't constantly run at maximum voltage, which helps keep operating temperatures within safe limits.
A: No. These devices rely entirely on the magnetic permeability of the target load. Austenitic stainless steel, aluminum, copper, and brass lack the atomic structure necessary to close a magnetic circuit. The magnetic flux lines cannot engage with them, resulting in zero lifting force.
A: Without continuous electrical power, the magnetic field instantly collapses and the load drops immediately. Because of this extreme hazard, industrial crane setups require integrated battery backup systems or UPS units. These backups hold the load securely, giving the operator time to safely lower it during a grid emergency.
A: Residual magnetism is the lingering magnetic pull that remains in the core after you cut the power. It can cause lighter loads or scrap to stick to the magnet face. High-quality controllers solve this by sending a brief reverse-current pulse into the coils. This pulse cleans the residual magnetism, ensuring the load drops cleanly and instantly.
