Overview of Magnetic Separators
Zhongke Electric magnetic separators are designed with computer optimization featuring deep magnetic penetration, strong suction, low energy consumption, and high reliability. Based on different magnetic sources and applications, our separators include electromagnetic and permanent magnetic types with multiple series.
CT Series Permanent Magnetic Drums
• Wet magnetic separation for strong magnetic minerals
• Ø500-1800mm drums, 120-600mT magnetic field
• Magnetite separation specialist
DLS High-Efficiency Vertical-Ring Magnetic Separators
• Large-scale magnetic separator with 1.8T field
• 20-2200 t/h capacity, domestic leading technology
• Hematite processing solution
DLSY High-Gradient Permanent Magnetic Separators
• Energy-saving permanent magnet, >80% power reduction
• >0.8T field, 50-550 t/h capacity
• Weak magnetic minerals
Iron Removal Equipment Series
• Complete iron removal solutions
• 400-2200mm width, >95% removal rate
• Industrial contamination control
Best-Selling Magnetic Separator Models
Technical Advantages
Computer-Optimized Design
Reasonable magnetic field distribution with large penetration depth and strong suction force
High-Performance Materials
NdFeB rare earth permanent magnets with high coercivity and remanence
Energy Efficient
Permanent magnetic systems save 80%+ energy vs electromagnetic types
Intelligent Control
PLC programmable control with fault diagnosis and remote monitoring
Why Choose Our Magnetic Separators
Zhongke Electric magnetic separators represent 20+ years of innovation in mineral processing technology. Our advanced permanent magnetic systems, proven in major mining operations worldwide, deliver superior separation efficiency while reducing energy consumption and operational costs for iron ore beneficiation and industrial applications.
Multi-Stage Magnetic Separation Technology
Zhongke Electric magnetic separators provide complete separation solutions with specialized equipment for each processing stage. CTS series handles coarse particle pre-selection up to 15mm, CTB series performs stage separation after grinding below 0.5mm, and NCTB series achieves concentration and dehydration with concentrate density reaching 65-72%. This comprehensive approach maximizes iron recovery rates >99.5% while reducing grinding circuit loads and improving overall plant efficiency.
Breakthrough High-Gradient Magnetic Field Performance
Our DLS series vertical-ring magnetic separators achieve industry-leading 1.8T background magnetic field strength with enhanced magnetic field gradient through innovative matrix technology. The multi-spiked stainless steel magnetic-conductive design creates superior magnetic force distribution, enabling effective separation of challenging weak magnetic minerals including hematite, limonite, and ilmenite that conventional separators cannot process efficiently.
Patented Tank Structure Optimization
Advanced fluid dynamics simulation guides our tank design featuring three specialized configurations: semicounterflow for maximum recovery, counterflow for high-grade concentrates, and concurrent flow for coarse particle processing. The improved CTS concurrent flow structure prevents slurry blockage during large particle separation, while computer-optimized fluid patterns eliminate turbulence zones that cause mineral loss, delivering 2-4% higher concentrate grades compared to conventional designs.
About Hunan Zhongke
Hunan Zhongke Electric Co., Ltd is China's leading manufacturer of magnetic separation equipment, specializing in advanced magnetic separators for mineral processing industries worldwide. With decades of engineering expertise and cutting-edge technology, we deliver comprehensive magnetic separation solutions that maximize mineral recovery rates while ensuring superior product quality and operational efficiency for mining operations.
Electromagnetic strands delivered
Manufacturing facility
Patents, National Scienceand Technology Progress Awards
Achievements and Qualifications
Zhongke Electric has earned prestigious industry recognition and professional certifications that demonstrate our commitment to excellence in magnetic separation technology. Our comprehensive qualifications showcase proven expertise in delivering world-class solutions.
National Technical Invention Certificates
Export License Authorization
ISO Quality Management System Certification
These certifications validate our technical capabilities and commitment to delivering reliable, innovative magnetic separation equipment that meets international standards and exceeds customer expectations in mineral processing applications.
Get Professional Solutions Today
Need magnetic separation equipment for your mining operation? Our technical specialists provide customized solutions that maximize mineral recovery rates and operational efficiency.
FAQ About Magnetic Separators
Related Blogs
-
Nashville, TN, USA – May 5-8, 2025 - Hunan Zhongke Electric Co., Ltd. (SZSE: 300035), a global leader in electromagnetic metallurgy technology, marked its North American debut at AISTech 2025, the world’s premier iron and steel technology conference, held at the Music City Center. The event united industry pioneers to explore innovations driving efficiency and sustainability in steel production.Company News -
AISTech 2025, North America's Largest Annual Conference and Exposition for Iron & Steel, is just around the corner. It will be held from May 5 - 8, 2025, at the Music City Center in Nashville, USA. This leading global event in the iron and steel industry is set to showcase cutting-edge technoloCompany News -
Hunan Provincial Party Committee Deputy Secretary and Governor Mao Weiming and his entourage visited Zhongke Electric for investigation.On January 3, Mao Weiming, deputy secretary of the Hunan Provincial Party Committee and governor of Hunan Province, led the investigation team to conduct in-depth iCompany News
Contact Our Magnetic Separator Experts
Need Professional Magnetic Separation Solutions?
Phone: +86-15173020676
E-mail: wangfp@cseco.cn
Related Videos
Welcome to Zhongke Electric Company! We are a leading enterprise dedicated to providing advanced and reliable electromagnetic iron separator solutions for mining and mineral processing industries worldwide. In mineral processing operations, electromagnetic iron separators are crucial equipment for removing iron contaminants and protecting downstream equipment. We understand that the efficiency and reliability of electromagnetic separation technology are essential for maintaining product purity and equipment safety in industrial environments.

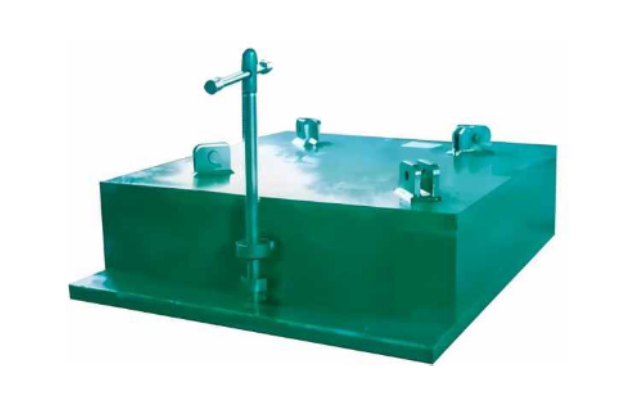

Electromagnetic Iron Separator
Our electromagnetic iron separators feature powerful electromagnetic coils designed for continuous iron removal from various materials. With adjustable magnetic field strength and robust construction, this equipment ensures efficient contamination control across diverse industrial applications while maintaining high processing capacity and reliable long-term operation for mineral processing plants.
