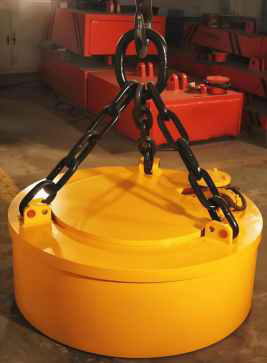

RCDB Series Disk Type Magnetic Separators

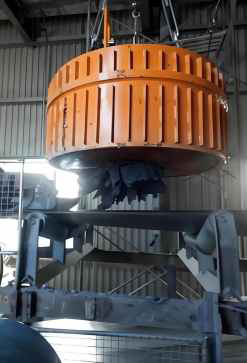

The RCDB Series Disk Type Magnetic Separators(also known as PDC Disc-type Electromagnetic Separator)is an iron removal device used to clear ferrous impurities from
powdery or block of non-magnetic materials.This series of products is an electromagnetic separator for long-term operation.The suspension system is equipped with adjustable
hooks,which can adjust the set height conveniently.It is suitable for removing ferromagnetic objects from raw materials such as coal,coke,ore,limestone,gravel,grains,wood
curls,etc.,which are relatively thick and have large particle sizes.
Availability:
Quantity:
  • RCDB

  • Zhongke electric

T h e  m a g n e t i c  c i r c u i t  i s  d e s i g n e d  w i t h  c o m p u t e r simulation,featuring large magnetic penetration depth, strong magnetic force and high magnetic field gradient, ensuring maximum suction within the working distance.

The shell is made of fully sealed steel plate welding and undergoes strict air tightness testing.Meanwhile,the coil and the

shell are fixed with vacuumpoured epoxy resin adhesive, enabling reliable operation even in extremely harsh environments.

Adopting a natural cooling method,it requires no control of additional heat transfer or thermal conduction equipment, thus reducing potential failure points.Its performance indicators comply with the requirements of the JB/T7689-2004 standard. This product can remove ferromagnetic substances weighing 0.1-35kg mixed in non-magnetic materials,with an iron removal rate of over 95%.
