Industrial material handling requires far more than a basic understanding of magnetic physics. Modern manufacturing facilities need real-world, high-capacity solutions. Heavy industries like steel fabrication, mining, and shipbuilding face a constant, high-stakes challenge every day. They must minimize mechanical rigging time while aggressively maximizing operator safety and load stability. You cannot rely on slow, outdated lifting methods when moving multi-ton steel plates or irregular scrap metal.
Understanding the internal mechanics of a lifting electromagnet directly impacts your equipment selection. It also dictates your overall safety compliance and operational efficiency. When you know exactly how magnetic flux interacts with different steel alloys, you can prevent catastrophic load drops. By mastering these core principles, you can transform a hazardous, labor-intensive workflow into a streamlined, automated process. We will explore how these powerful devices function under extreme industrial conditions. You will learn to evaluate technical specifications, mitigate environmental risks, and confidently choose the right magnetic handling technology for your facility.
Industrial lifting electromagnets rely on direct current (DC) flowing through internal copper/aluminum coils to generate deep magnetic flux, requiring continuous power to maintain a hold.
Electro-permanent magnets (EPM) offer an alternative by using electricity only to toggle the magnetic state, providing intrinsic fail-safes during power losses.
Safe Working Load (SWL) is not absolute; lifting capacity is heavily dictated by material thickness, surface conditions (air gaps), and operating temperatures.
Compliance with safety frameworks (e.g., HSE, OSHA) requires integrated fail-safes, variable safety factors (typically 2:1 to 3:1), and rigorous load testing.
To fully appreciate industrial magnetic lifting, we must look inside the heavy-duty housing. The structural design of these units prioritizes extreme durability and focused magnetic force. A rugged exterior steel casing protects the delicate internal components from brutal impacts common in foundries and scrap yards. More importantly, this casing acts as a crucial part of the magnetic circuit, helping to channel the magnetic field downward toward the payload.
The internal architecture consists of several critical components functioning in unison:
The Outer Steel Casing: Provides high-impact protection and serves as the primary magnetic flux return path.
The Wire Coils: Tightly wound copper or aluminum coils sit inside the casing. Copper offers superior electrical conductivity, while aluminum reduces the overall weight of the magnet.
The Central Steel Core: This solid center pole acts as the primary emission point for the magnetic field.
The Insulation and Potting Compound: Industrial-grade resins encapsulate the coils, preventing moisture ingress and protecting against mechanical shock.
When the control system applies direct current (DC) to the internal coils, the electricity flows in a circular pattern. This movement creates a massive, highly concentrated magnetic field. The strength of this field depends directly on the number of coil turns and the amperage of the current. Unlike simple permanent magnets, a heavy-duty lifting electromagnet projects a highly directional force. The system focuses the magnetic flux straight down into the ferromagnetic payload.
The magic happens when the steel payload interacts with the magnet. The load itself becomes the final bridge in the system. It completes the magnetic circuit between the central pole and the outer casing. At this moment, the steel block or scrap metal literally transforms into an extension of the magnet itself. We design industrial units for deep flux penetration rather than mere surface-level adhesion. Deep penetration ensures the magnetic field grabs the entire thickness of a thick steel slab. If the system only grabbed the surface, the underlying weight of a massive block could cause the structural integrity of the steel itself to tear away during a lift.

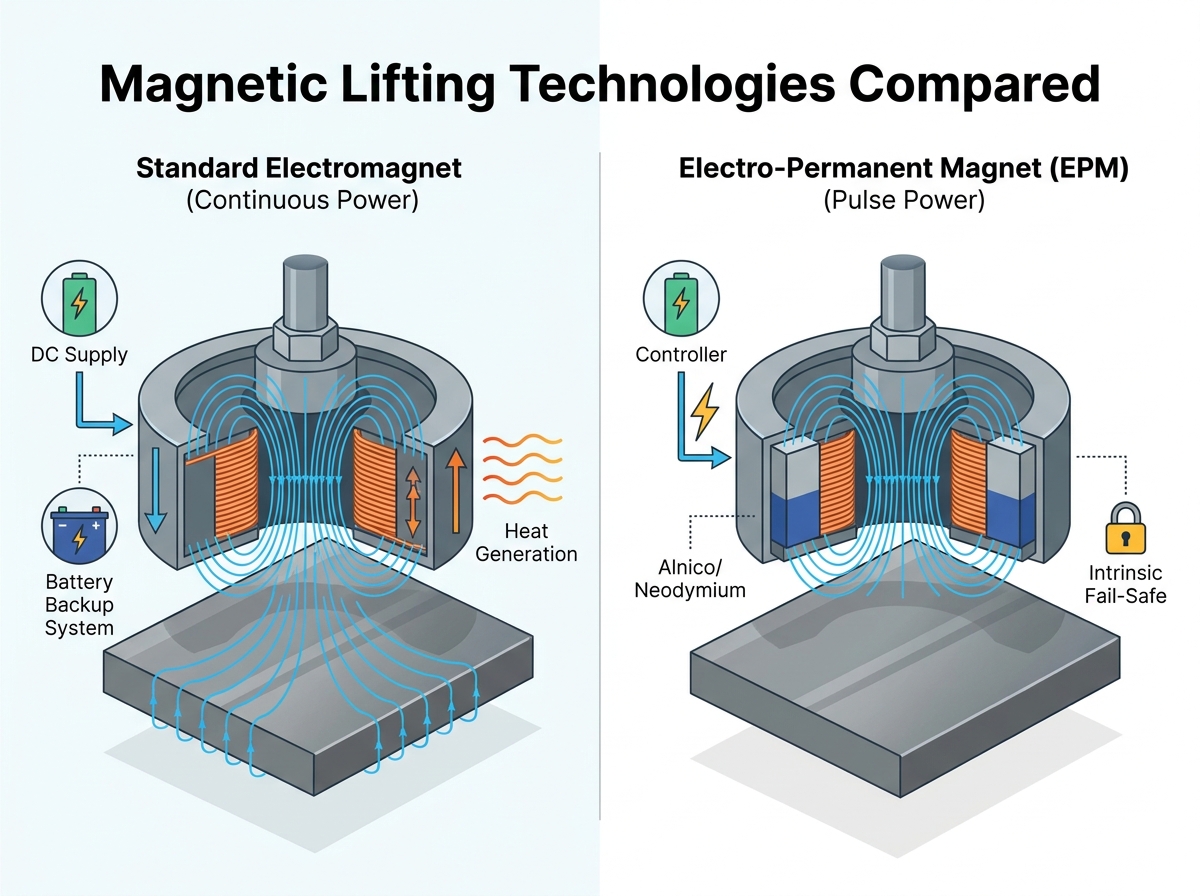

Choosing between standard electric models and electro-permanent models (EPM) represents a critical engineering decision. These two technologies approach the lifting process from completely different mechanical paradigms. Understanding their operational power differences will help you match the equipment to your production line's specific demands.
A standard unit requires continuous electrical current to maintain its magnetic hold. As long as the load hangs in the air, electricity must flow through the coils. This continuous operation generates significant heat during high duty cycles. As the copper or aluminum coils heat up, their electrical resistance increases. Increased resistance causes the current to drop, which temporarily reduces the overall lifting capacity. Engineers call this phenomenon thermal degradation. Operators must carefully monitor duty cycles to prevent excessive heat buildup.
Conversely, an Electro-Permanent Magnet (EPM) operates using brief, intense electrical pulses lasting only milliseconds. Inside an EPM, you will find dual sets of permanent magnets—usually a combination of stable Neodymium and switchable Alnico magnets. The electrical pulse simply reverses the polarity of the Alnico magnets. When the polarities align, the magnetic field projects outward into the load. When they oppose, the field stays entirely contained within the steel casing, releasing the load. An EPM requires zero power during the actual lift. It stays completely cool, completely eliminating thermal degradation.
This power difference heavily influences fail-safe protocols. Standard electromagnets absolutely require robust battery backup systems. If the main facility power cuts out, the battery must instantly take over to prevent a catastrophic load drop. EPMs possess intrinsic mechanical safety. Because they rely on permanent magnetic material during the lift, a total power failure has no effect on the hold. The load stays securely attached until power returns and the operator intentionally pulses the unit off.
Feature | Standard Electromagnet | Electro-Permanent Magnet (EPM) |
|---|---|---|
Power Requirement | Continuous power during lift | Millisecond pulse only to turn on/off |
Heat Generation | High (susceptible to thermal degradation) | None (remains cool during continuous lifts) |
Fail-Safe Mechanism | Requires external battery backup systems | Intrinsic safety (holds load during power failure) |
Primary Applications | Scrap sorting, bulk material handling | Precision automation, machine tending |
Standard models generally offer a more cost-effective solution for continuous, aggressive scrap yard sorting where materials are loose and irregular. EPMs excel in high-precision environments. You will favor them for CNC machine tending, automated cutting tables, and situations requiring ultra-safe, low-heat operation.
Lifting a compact, dense block of steel presents a relatively straightforward engineering challenge. However, moving oversized materials introduces complex physical dynamics. When handling extreme loads, such as a 30-meter flexible steel plate used in shipbuilding, a single large magnet will inevitably fail. Long steel plates sag under their own weight at the unsupported ends. This drooping creates a dangerous "peeling effect." The bending steel acts like a pry bar, gradually breaking the magnetic circuit from the edges inward until the entire load detaches.
To prevent material deflection and peeling, engineers utilize multi-magnet spreader beams. A spreader beam distributes the lifting force across several smaller magnetic modules placed strategically along the length of the load. This setup keeps the steel plate perfectly rigid and horizontal. The synchronized magnets act as a unified array, safely distributing the massive tonnage.
Proper crane and hoist integration dictates how seamlessly your magnetic system functions within the larger facility. Operators usually control the electrical systems for a lifting electromagnet directly from the overhead gantry crane cabin or a wireless belly-box transmitter. For highly automated environments, engineers integrate the magnet's control panel directly into the programmable logic controllers (PLCs) of robotic arms. This integration allows the production line to automatically energize and de-energize the lifting modules based on sensor feedback, completely removing human operators from the danger zone.
Duty cycle considerations play a massive role in crane integration. Manufacturers rate electromagnets based on their maximum operating time within a 10-minute window. For example, a 50% duty cycle means the magnet can remain energized for 5 minutes, followed by a mandatory 5-minute cooling period. Continuous operation in busy automated production lines requires matching the equipment's rated duty cycle to the facility's throughput. Pushing a 50% duty cycle magnet to run 80% of the time will cause severe overheating. Overheating leads to catastrophic flux loss, rendering the equipment unsafe and prone to dropping loads unexpectedly.
Industrial lifting inherently involves immense risk. Regulatory bodies view magnetic lifting devices through a strict safety lens. Frameworks established by organizations like the HSE (Health and Safety Executive) and OSHA mandate rigorous operational protocols. The most critical directive involves drop zones. Operators must physically clear the area beneath and adjacent to the lifting path. No personnel should ever walk under a magnetically suspended load, regardless of the fail-safes in place. Separation of humans from the drop zone stands as the ultimate risk mitigation strategy.
Understanding the published Safe Working Load (SWL) of your equipment is only the first step. You must actively de-rate this capacity based on harsh environmental realities. Factory testing occurs under perfect conditions using thick, flat, machined low-carbon steel. Your facility likely handles imperfect materials.
Air Gaps: Any non-magnetic space between the magnet face and the steel dramatically reduces holding force. Rust, mill scale, heavy industrial paint, and uneven surface textures create tiny air gaps. Even a 1mm air gap can exponentially degrade magnetic penetration, cutting lifting capacity by up to 50%.
Material Composition: Magnetic flux loves low-carbon steel. It achieves 100% of its rated capacity on these materials. High-alloy steels, cast iron, and materials with high nickel content resist magnetic lines of force. Lifting cast iron often requires de-rating the magnet's capacity by almost half.
Thickness Limitations: Magnetic fields require physical space within the metal to complete their circuit. If you attempt to lift a thin metal sheet that falls below the magnet's specified minimum thickness, the flux will "bleed" right through the material. The field cannot fully saturate the thin steel, resulting in a dangerously weak hold.
To combat these variables, manufacturers build safety factors directly into the equipment. Standard industrial safety factors usually range from 2:1 to 3:1. A 3:1 tear-off limit means that a magnet rated to lift 2,000 kg actually requires 6,000 kg of brute force to separate it from an ideal steel block. You must never treat these engineering margins as operational capacity. They exist solely to absorb the unpredictable variables of air gaps, minor material impurities, and sudden dynamic shocks from crane movements.
Procuring the ideal magnetic lifting system demands a systematic evaluation of your unique production environment. Guesswork inevitably leads to dangerous under-specifying or wasteful over-engineering. You must define the precise parameters of your workflow before speaking with a manufacturer.
Begin with comprehensive payload profiling. You need exact data points for vendor evaluation. Determine the absolute maximum weight you intend to lift. Just as importantly, define the minimum thickness of the materials you handle, as thin sheets dictate specific pole designs. Measure the maximum length and width of your loads to determine if you require single magnets or multi-module spreader beams. Finally, catalogue the specific material grades you process. A mix of carbon steel and cast iron will drastically alter your equipment requirements.
Next, conduct a thorough environmental assessment of your workspace. Magnets behave differently depending on their surroundings. High ambient temperatures severely impact lifting capacity. Once steel reaches its Curie temperature, it loses all magnetic properties. Even moderately high heat degrades internal coil efficiency. If you operate in a foundry or forging facility, you need specialized high-temperature models featuring thermal shields and advanced insulation classes. Airborne particulates pose another threat. Mining and scrap operations produce abrasive dust that can wear down standard pole shoes. Lastly, evaluate your power grid stability. Frequent voltage drops will compromise standard electric units, making EPMs a much safer alternative in areas with unreliable electricity.
Moving forward requires a methodical approach. We highly recommend conducting on-site material testing. Send scrap samples of your most difficult loads to the manufacturer for physical tear-off tests. Consult directly with engineering teams to design custom spreader-beam arrays tailored specifically to your long or awkward loads. Proper specification takes time, but it guarantees a lifting solution perfectly matched to your industrial demands.
The industrial shift from traditional mechanical rigging to advanced magnetic lifting represents a massive leap in operational efficiency. By eliminating heavy chains, slings, and manual hooks, facilities can dramatically accelerate their material handling cycles while significantly reducing operator fatigue. As we have explored, a lifting electromagnet relies on intricate internal physics, transforming electrical energy into a concentrated holding force capable of moving massive payloads.
However, successful deployment hinges entirely on matching the specific technology to your exact material profile. Standard electromagnets provide raw, continuous power for bulk handling, while Electro-Permanent Magnets offer intrinsic safety and precision for automated processes. You must continually account for material thickness, surface air gaps, and the unique environmental hazards of your workspace to maintain true safety compliance.
Take the next step in modernizing your facility. Carefully document your exact load profiles, temperature conditions, and power capabilities. Use this data to initiate a qualified engineering consultation, ensuring you select a magnetic handling system that guarantees safety, reliability, and peak industrial performance.
A: A standard electric lifting magnet drops its load immediately unless equipped with an integrated battery backup system. These backups typically provide 15 to 20 minutes of emergency power to safely lower the material. Conversely, an Electro-Permanent Magnet (EPM) features an intrinsic fail-safe. It uses permanent magnetic material to hold the load and requires zero electricity during the lift. Power failures do not affect EPMs.
A: Yes, they absolutely can. Engineers customize the magnet's pole shoes to perfectly match the contour of the load. For handling pipes, structural steel, or coiled materials, manufacturers design specialized V-block or stepped pole profiles. These custom shapes maximize surface contact, eliminating dangerous air gaps and ensuring a tight magnetic grip on irregular items.
A: High heat degrades magnetic performance in two ways. First, hot materials approach their Curie point, physically losing their ferromagnetic properties. Second, heat increases electrical resistance within the magnet's internal coils, temporarily reducing lifting power. Foundries lifting hot billets require specially engineered high-temperature magnets featuring thermal deflector plates and high-grade internal resin insulation.
A: Several factors cause this issue. The most common culprit is air gaps created by thick rust, mill scale, or uneven surfaces. Insufficient material thickness also causes problems; if the steel is too thin, the magnetic flux bleeds through instead of gripping. Additionally, verify your input voltage. Low power supply directly reduces the current flowing through the coils, weakening the magnetic field.
