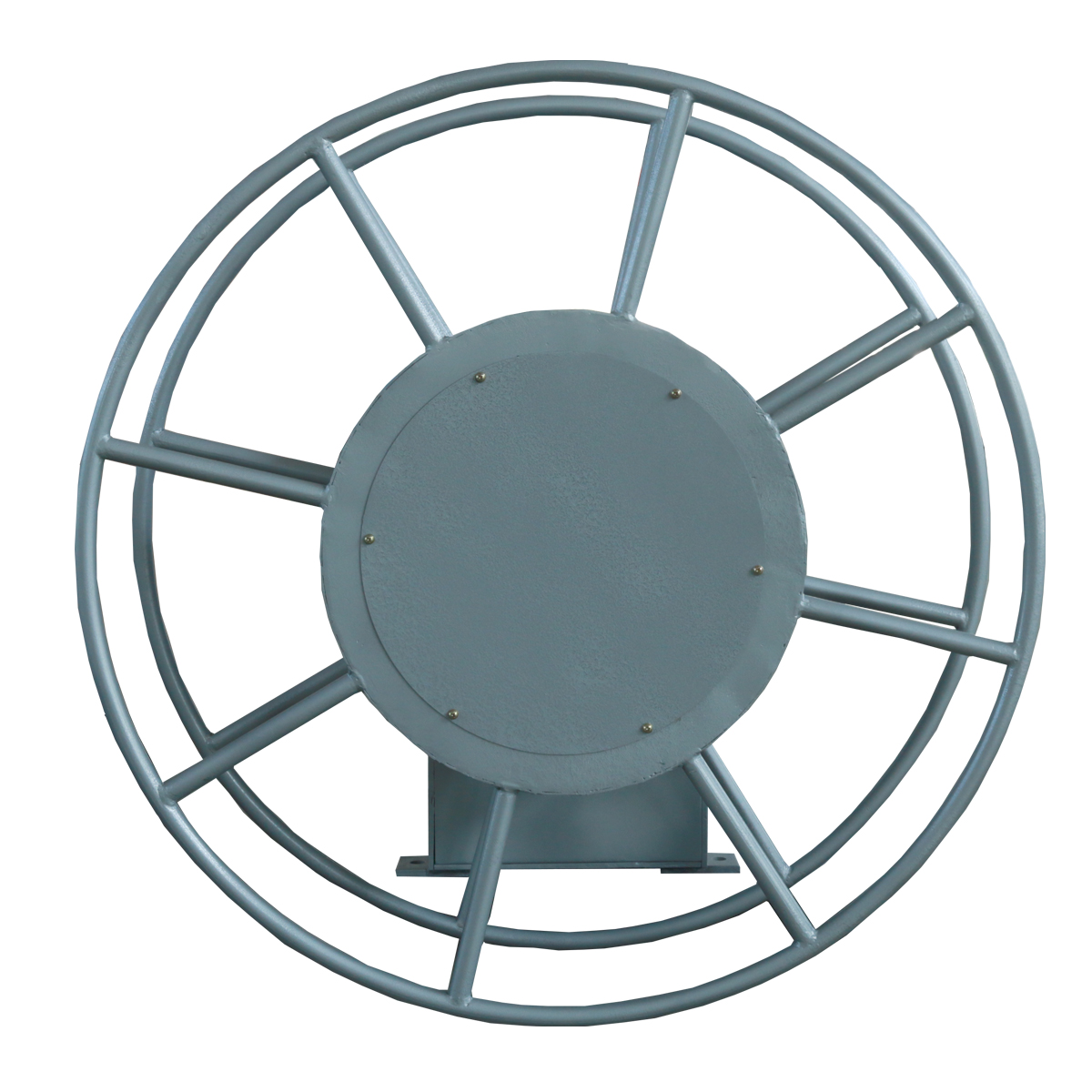

JD Series Electric Extension Cable Reel for Cable And Hose

JD series cable reel are applied for coiling heavy cable and hose. They are driven by torque motor.
Availability:
Quantity:
  • JD

  • Zhongke

  • 8548900090


JD series cable reel are applied for coiling heavy cable and hose. They are driven by torque motor.


Features:

1. With large coiling capacity, the cable drum can coil cable or hose of large specification from long distance;

2. Long service life, reliable operation;

3. With torque adjustment and interlocking control device, it's convenient to adjust the coiling strength, and it's flexible to coil and release;

4. Electric energy is transmitted by the structure of collector slip ring carbon brush, the power supply is continuous and stable.

5. Reverse running is available, it's convenient to change cable.


Technical data


No.ModelPower typeLength of   cable
    (m)
Enable current on   & off(A)Cores of   cable Square(mm2)Installation   type
1JDTorque   motor50-200120-3204YC3*25+1*10-YC3*120+1*35Vertical   & horizontal
2JDTorque   motor50-200120-3204YC3*25+1*10-YC3*120+1*35Vertical   & horizontal
3JDTorque   motor50-200120-3204YC3*25+1*10-YC3*120+1*35Vertical   & horizontal
4JDTorque   motor50-200120-3204YC3*25+1*10-YC3*120+1*35Vertical   & horizontal
5JDTorque   motor50-200120-3204YC3*25+1*10-YC3*120+1*35Vertical   & horizontal
