large lifting capacity Series MW84 magnet lifting for steel plates and coiled strip

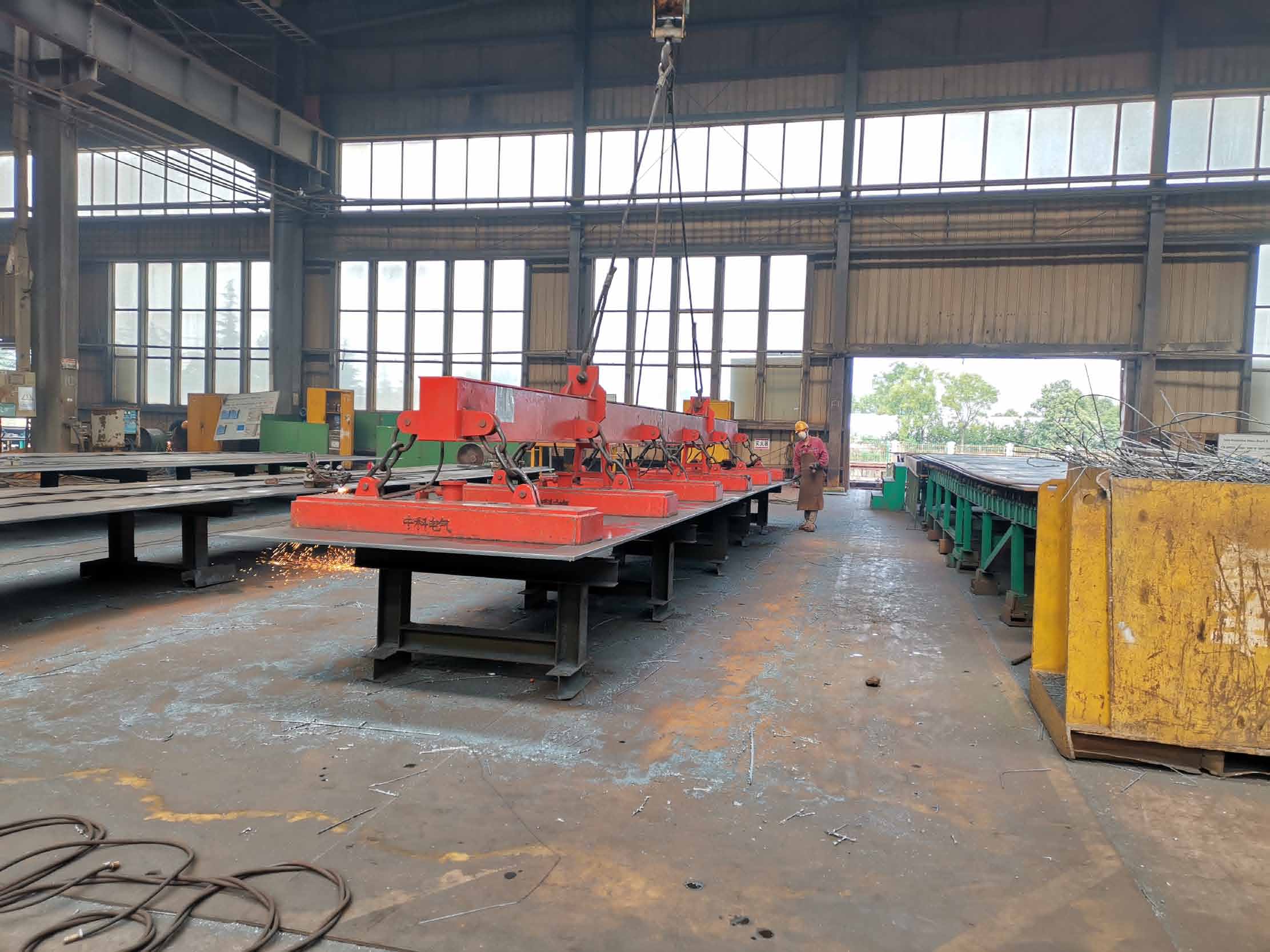

Series MW84 lifting magnets are for lifting steel plates of different thickness. They are widely applied in loading and unloading, transportation, warehouses, docks, etc.
The lifting magnet can lift single piece or many pieces of steel plates each time.
Availability:
Quantity:
  • MW84
  • Zhongke
  • 8505901000

Appliation

Series MW84  lifting magnets are for lifting steel plates of different thickness. They are widely applied in loading and unloading, transportation, warehouses, docks, etc.

The lifting magnet can lift single piece or many pieces of steel plates each time.


Features

With strong absorption, deep magnetic permeability and large lifting capacity, the steel plates can be lifted safely and more efficiently;


The magnetic field is evenly distributed, and the steel plate can be safely and stably lifted even when the plates bent and deformed;


The quantity of lifted or released steel plates can be accurately controlled;


With excellent coil insulation and high pressure resistance, good thermal conductivity of internal filling material, and fully sealed structure.


Technical parameters of MW84 lifting magnet
ModelSize(mm)Current(A)Voltage(V)
MW84-12040L/11200*400 8220
MW84-16040L/11600*40012220
MW84-20040L/12000*40015220
MW84-24040L/12400*40020220
MW84-12040L/21200*400 6220
MW84-16040L/21600*40010220
MW84-20040L/22000*40012220
MW84-24040L/22400*40015220
MW84-10535L/11050*3506220
MW84-14035L/11400*3508220
MW84-17535L/11750*35010220
MW84-21035L/12100*35013220
MW84-24535L/12450*35016220
MW84-10535L/11050*3505220
MW84-14035L/21400*3507220
MW84-17535L/21750*3509220
MW84-21035L/22100*35012220
MW84-24535L/22450*35015220
For more details, please feel free to contact us!
