Applications

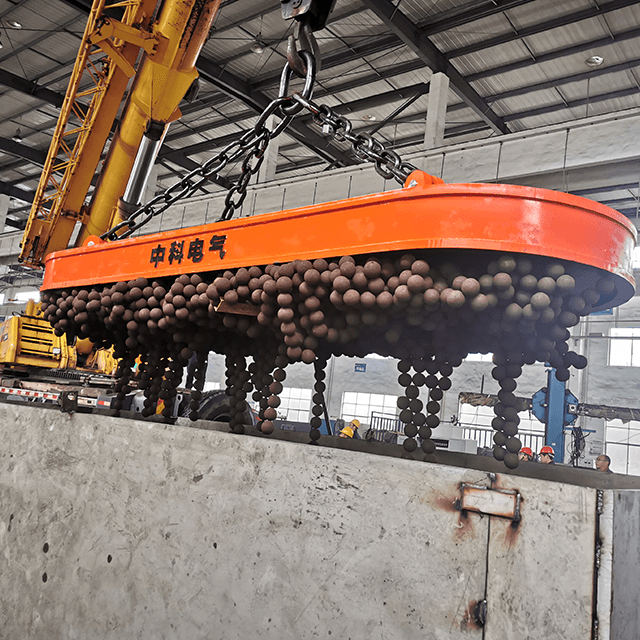

It is widely used for handling cast iron ingots, steel balls, and steel scrap.
Features
Simple structure, it's convenient to install.
Modes: Constant voltage (DC 220V); strong excitation method (DC290V/200V); overexcitation method (DC 350V/290V/200V), which can accelerate the excitation speed and improve the lifting capacity by approximately10%.
Low power consumption, long service life.
| Technical parameters of MW61 lifting magnet | |||
| Model | Size(mm) | Current(A) | Voltage(V) |
| MW61-300210L/1-75 | 3000*2100 | 148 | 220 |
| MW61-400210L-G-75 | 4000*2100 | 168 | 220 |
| MW61-250200L-1 | 2500*2000 | 129 | 220 |
| MW61-11060L-1 | 1120*620 | 27 | 220 |
| MW61-380180L/1 | 3800*1800 | 230 | 220 |
| MW61-310210L | 3100*2100 | 148 | 220 |
| MW61-400160L/1-75 | 4000*1600 | 185 | 220 |
| MW61-400160L/1 | 4000*1600 | 195 | 220 |
| MW61-180130L/2/75 | 1800*1300 | 93 | 220 |
| MW61-350180L/2 | 3500*1800 | 162 | 220 |
| MW61-240180L/2 | 2420*1820 | 123 | 220 |
| MW61-500180L/2-75 | 5000*1800 | 228 | 220 |
| MW61-400160L-1-QC | 400*1600 | 226 | 220 |
| MW61-350170L/1-75 | 3500*1700 | 214 | 220 |
| MW61-380170L/1-75 | 3800*1700 | 230 | 220 |
| MW61-350180T/2-75 | 3500*1800 | 157 | 220 |
| MW61-280170L-1-75 | 2800*1750 | 119 | 220 |
| MW61-380165L/1-75J | 3800*1650 | 200 | 220 |
| MW61-300210L/1-75 | 3000*2100 | 136 | 220 |
| MW61-500180L/1-75QC | 5000*1800 | 209 | 220 |
| MW61-250120L/1-75 | 2500*1200 | 109 | 220 |
| MW61-250150L/1-75 | 2500*1500 | 118 | 220 |
| MW61-360180L-1-QC-75 | 3600*1800 | 194 | 220 |
| MW61-400200L/1 | 4000*2000 | 213 | 220 |
| MW61-380200L/1-75 | 3800*2000 | 199 | 220 |
| MW61-380150L/1-75 | 3800*1500 | 199 | 220 |
| MW61-320175L/2-75 | 3200*1750 | 140 | 220 |
| MW61-330168L/1-75 | 3300*1680 | 164 | 220 |
| MW61-250200L/1-75 | 2500*2000 | 139 | 220 |
| MW61-330165L/1-75 | 3300*1650 | 166 | 220 |
| MW61-200130L/2-75 | 2000*1300 | 77 | 220 |
| MW61-300150L/1 | 3000*1500 | 156 | 220 |
| MW61-400220L/1-75QC | 4000*2200 | 214 | 220 |
| MW61-400220L/1-75 | 4000*2200 | 195 | 220 |
| For more details, please feel free to contact us. | |||
