Deep Magnetic Penetration MW61 Lifting Magnet for Steel Scrap,steel Ball, Iron Ingot And Crane

It is widely used for handling cast iron ingots, steel balls, and steel scrap. Simple structure, it's convenient to install. Modes: Constant voltage (DC 220V); strong excitation method (DC290V/200V); overexcitation method (DC 350V/290V/200V), which can accelerate the excitation speed and improve the lifting capacity by approximately10%. Low power consumption, long service life.
Availability:
Quantity:
  • MW61
  • Zhongke
  • 8505901000

Applications

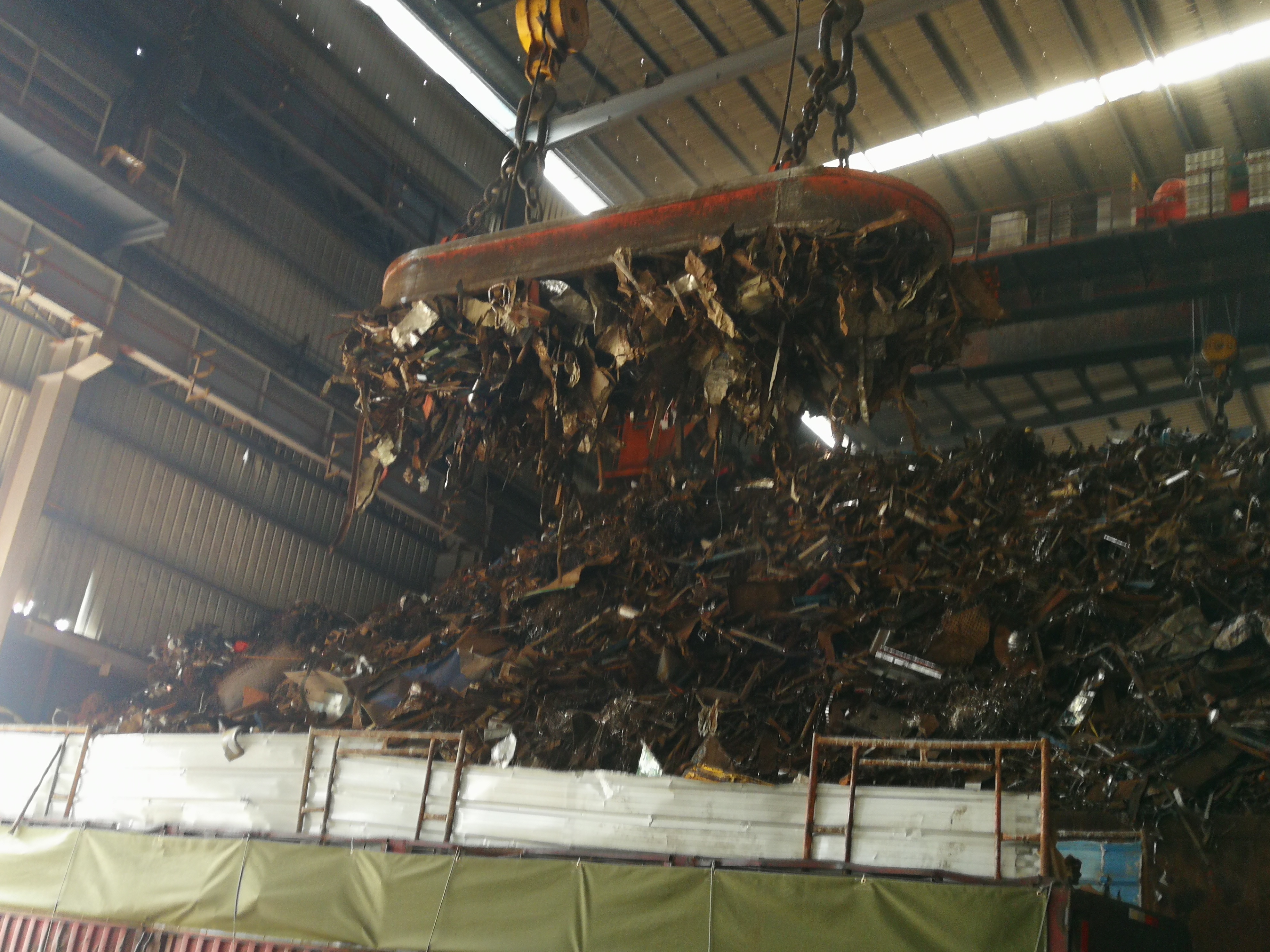

It is widely used for handling cast iron ingots, steel balls, and steel scrap.


Features

Simple structure, it's convenient to install.

Modes: Constant voltage (DC 220V); strong excitation method (DC290V/200V); overexcitation method (DC 350V/290V/200V), which can accelerate the excitation speed and improve the lifting capacity by approximately10%.

Low power consumption, long service life.


Technical   parameters of MW61 lifting magnet
ModelSize(mm)Current(A)Voltage(V)
MW61-300210L/1-753000*2100148220
MW61-400210L-G-75 4000*2100168220
MW61-250200L-12500*2000129220
MW61-11060L-11120*62027220
MW61-380180L/13800*1800230220
MW61-310210L3100*2100148220
MW61-400160L/1-754000*1600185220
MW61-400160L/14000*1600195220
MW61-180130L/2/751800*130093220
MW61-350180L/23500*1800162220
MW61-240180L/22420*1820123220
MW61-500180L/2-755000*1800228220
MW61-400160L-1-QC400*1600226220
MW61-350170L/1-753500*1700214220
MW61-380170L/1-753800*1700230220
MW61-350180T/2-753500*1800157220
MW61-280170L-1-752800*1750119220
MW61-380165L/1-75J3800*1650200220
MW61-300210L/1-753000*2100136220
MW61-500180L/1-75QC5000*1800209220
MW61-250120L/1-752500*1200109220
MW61-250150L/1-752500*1500118220
MW61-360180L-1-QC-753600*1800194220
MW61-400200L/14000*2000213220
MW61-380200L/1-753800*2000199220
MW61-380150L/1-753800*1500199220
MW61-320175L/2-753200*1750140220
MW61-330168L/1-753300*1680164220
MW61-250200L/1-752500*2000139220
MW61-330165L/1-753300*1650166220
MW61-200130L/2-752000*130077220
MW61-300150L/13000*1500156220
MW61-400220L/1-75QC4000*2200214220
MW61-400220L/1-754000*2200195220
For more details, please feel free to contact us.
