Optimum Design Metallurgical Equipment In-roll Electromagnetic Stirrer for Continuous Casting Steel

Applied in continuous casting in steelmaking industry to improve steel quality, increase produced steel grades and productivity.
The splitting design is for continuous caster(CCM) with plate width ≥2600mm.
Availability:
Quantity:
  • DJST
  • Zhongke
  • 8479820090

Application

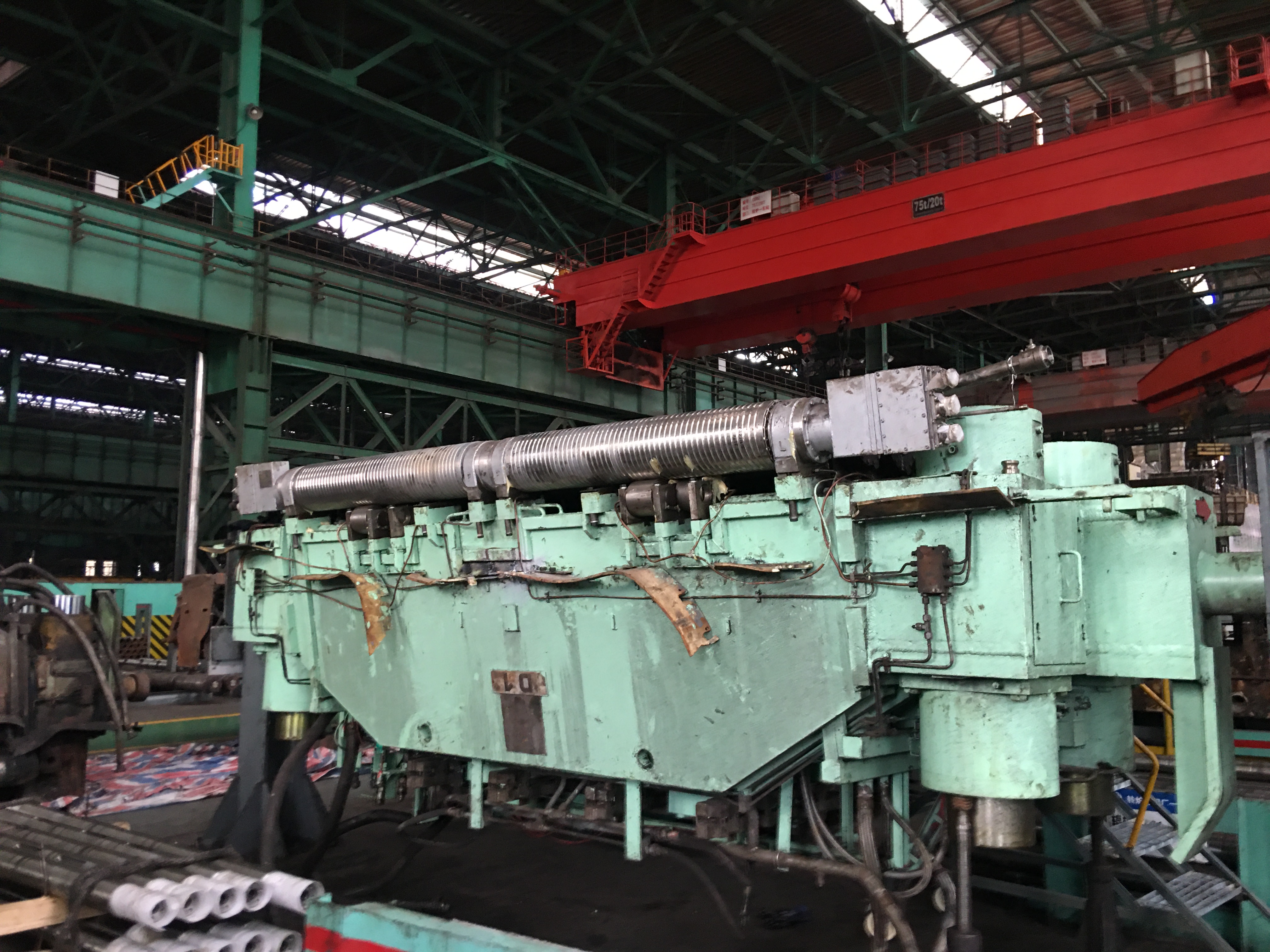

Applied for continuous casting steel. It is installed at segment of continuous caster.

The product has been applied on more than one hundred strand of continuous casting line for slab, and its

market share in China is over 90%;

Description

The in-roll electromagnetic stirrer with high thrust force for the secondary cooling zone of slab has passed the

scientific and technological achievements appraisal of China Metal Society for the advance technology.

Features

It is easy to install. The in-roll electromagnetic stirrer is installed on the segment of the continuous casting

machine(CCM), replacing free supporting roller without affecting the structure of the existing CCM. The installation dimensions are exactly the same as that of the ordinary roller, so it can be exchanged.

The position is easy to be adjusted;


lt adopts special magnetism shielding technology, non-cogging structure technology, numerical simulation

optimization of winding and iron core structure technology, the electromagnetic force is above twice that of

similar products (patented invention);


The roller sleeve is made of non-magnetic, high-Cr-Ni heat-resistant stainless steel, which has excellent wear

resistance and heat resistance; And its reasonable water circuit design provides high cooling efficiency;


The splitting design is for continuous caster(CCM) with plate width ≥2600mm.

Functions

Improve steel quality; Minimize internal defects, such as central cracks, center segregation, center shrinkage; Increase equiaxed grain;

Improve casting speed;
Increase produced steel grades.
